Jet-Drive

HDF2.5

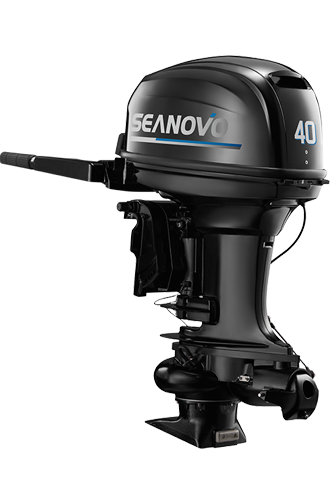

Name:J40F

Serial number:

Model J40F
Max.Output(kw) 29.4
Full Throttle Operating Range(rpm) 4500-5500
Stroke 2
Cylinder 2
Displacement(cc) 703
Bore×Stroke(mm) 80×70
Compression Ratio
Length×Width×Height (mm)
Length×Width×Height (inch)
Weight(kg) S:84
Weight(lb) L:185
Gear Ratio
Gear Shift Position F-N-R
lgnition System CDI
Cooling System Water-cooling
Starting System Manual
Control System Tiller
Lubrcation System
Regular Gasoline
Capacity of Fuel Tank(L) 24

Detail
