Enduro

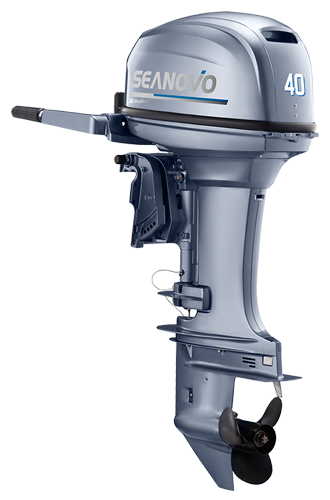

Name：40F
Serial number：
| Model | 40F |
| Max.Output(kw) | 29.4 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 703 |
| Bore×Stroke(mm) | 80×70 |
| Compression Ratio | |
| Length×Width×Height (mm) | S:1073×402×1218 L:1073×402×1345 |
| Length×Width×Height (inch) |
S:42.2*15.8*48.0 L:42.2*15.8*53.0 |
| Weight(kg) | S:76 L:82 |
| Weight(lb) | S:168 L:181 |
| Gear Ratio | 26:13 (2.00) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual&Electric Starter |
| Control System | Tiller control & Remote control |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 24 |
Detail
2 cylinders design with excellent reliability with proven 2-stroke technology, Simple in design, Fuel & oil mixing for optimum lubrication, Remote control and electric start on select 40F models
Easy operation and handling:
◇ Loop charged induction for smooth operation and fuel economy
◇ CD ignition system for quicker starts
◇ Power Trim & Tilt
◇ Oil reservoir located on the top of the motor for quick and easy refills.
◇ Through-the-prop exhaust for a quiet ride
◇ Thermostatically controlled cooling system for consistent engine temperature
◇ Stainless steel water pump housing for outstanding durability
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ Zinc coating on internal water passages for superior corrosion resistance
◇ Alternator fitted, add optional rectifier on manual start model to charge battery
◇ 24ltr fuel tank, fitting and fuel hose
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ High-power outboard motor Top cowling add cotton insulation, reduce the noise effectively.
Available in
◇ 40FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ 40FHL - Manual Start, Tiller Handle, Transom height – Long shaft
◇ 40FHES-Electric start, Tiller handle, Transom height-Short shaft
◇ 40FHEL-Electric start, Tiller handle, Transom height-Long shaft
◇40FES-Electric start, Remote control, Transom height-Short shaft
◇ 40FEL-Electric start, Remote control, Transom height-Long shaft
◇ 40FES-T-Electric start, Remote control, Power trim, Transom height-Short shaft
◇ 40FEL-T-Electric start, Remote control, Power trim, Transom height-Long shaft
