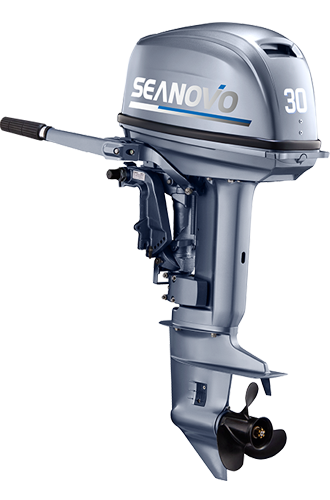

Enduro
Name：30F
Serial number：
| Model | 30F |
| Max.Output(kw) | 22 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 496 |
| Bore×Stroke(mm) | 72×61 |
| Compression Ratio | |
| Length×Width×Height (mm) | S:843×399×1146 L:843×399×1273 |
| Length×Width×Height (inch) |
S:33.2*15.7*45.1 L:33.2*15.7*50.1 |
| Weight(kg) | S:53 L:57 |
| Weight(lb) | S:117 L:126 |
| Gear Ratio | 27:13 (2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual&Electric Starter |
| Control System | Tiller control&Remote control |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 24 |
Detail
Excellent reliability with proven 2-stroke technology simple in design, Loop charged induction for smooth operation and fuel economy, CD ignition system for quicker starts, Remote control and electric start on select 30F models
◇ Through-the-prop exhaust for a quiet ride
◇ Thermostatically controlled cooling system for consistent engine temperature
◇ Stainless steel water pump housing for outstanding durability
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ Zinc coating on internal water passages for superior corrosion resistance
◇ 24ltr Fuel Tank, fittings and fuel hose
◇ Shallow water drive
◇ Alternator fitted, add optional rectifier kit to charge battery on manual model (standard on Electic start models)
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ High-power outboard motor Top cowling add cotton insulation, reduce the noise effectively.
Available in
◇ 30FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ 30FHL - Manual Start, Tiller Handle, Transom height – Long shaft
◇ 30FHES-Electric start, Tiller handle, Transom height-Short shaft
◇ 30FHEL-Electric start, Tiller handle, Transom height-Long shaft
◇ 30FFES-Electric start, Remote control, Transom height-Short shaft
◇ 30FFEL-Electric start, Remote control, Transom height-Long shaft
