EFI
Name：SNEF130
Serial number：
| Model | SNEF130 |
| Max. output(kw) | 95.6 |
| Max. RPM range | 5000-6000 |
| Stroke | 4 |
| Cylinder | 4 |
| Displacement(cc) | 1832 |
| Bore x Stroke(mm) | 81X88.9 |
| Weight(kg) | L:180 X:184 |
| Gear ratio | 28:13（2.15） |
| Gear shift position | F-N-R |
| Ignition system | ECM |
| Cooling system | Water cooling |
| Starting system | Electric start |
| Control system | Remote control |
| Tilt | Electric trim |
|
Standard capacity of fuel tank (L) |
Detail

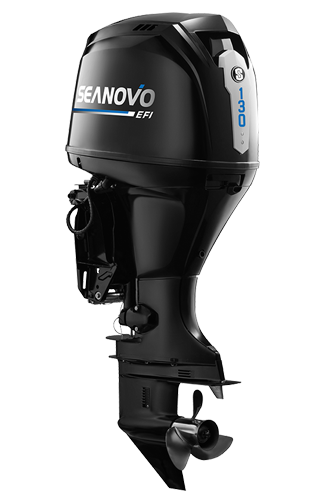

HIDEA power's new generation lightweight, high-end electronic fuel injection four-stroke outboard motor, the SNEF130, redefines the performance benchmark for mid-to-high horsepower engines with a powerful 95.6kW (130HP) output and an ultra-light weight of only 180kg (Long shaft). Its 1832cc displacement, DOHC (double overhead camshaft) 16-valve design, combined with exclusive MAPCID precision electronic fuel injection technology, allows you to enjoy a clean, smooth, and efficient power experience—whether for leisure cruising, water sports, or commercial operations, you'll experience a perfect balance of reliability, durability, and economy.
Optional models: SNEF130FEL-T, SNEF130FEX-T, SNEF130HEL-T, SNEF130HEX-T, SNEF130FEL-LT (counter), SNEF130FEX-LT (counter)
Why choose the SNEF130?
- Lightweight and compact structure, excellent power-to-weight ratio, only 180kg (long wheelbase), it offers easy installation, good acceleration, strong mid-range response, and class-leading fuel economy.
- Advanced electronic fuel injection system for more efficient combustion: Exclusive MAPCID precision cylinder identification technology (eliminating the camshaft phase sensor) enables sequential fuel injection, superior to the industry's common fuzzy cylinder identification; closed-loop oxygen sensor + carbon canister evaporation control ensures optimal air-fuel ratio throughout the entire range.
- Perfectly Stability under extreme environments: Rigorously tuned for high temperatures, extreme cold, and high altitudes, ensuring rapid cold starts and faster warm-up, reducing wear.
- Ultra-Low Noise and Vibration (Excellent NVH): Precision-weighted piston connecting rods + intelligent adjustment with knock sensors + large vibration-damping mounting brackets + flexible exhaust connections ensure smooth, quiet, and comfortable operation.
- Commercial-Grade Durability Enhancement: Large gearbox + reinforced main components + leading anti-corrosion technology provide excellent resistance to seawater corrosion. counter rotation is selectable, suitable for various commercial scenarios.
- Intelligent and Convenient Operation: Compatible with the NMEA2000 digital network system + mobile APP Bluetooth fault diagnosis + high-definition digital display instrument panel, providing intuitive monitoring and simple maintenance.
- Comprehensive Safety Monitoring: The ECU monitors key parameters such as water temperature, oil pressure, and overspeed in real time, providing timely alerts to protect engine safety.
